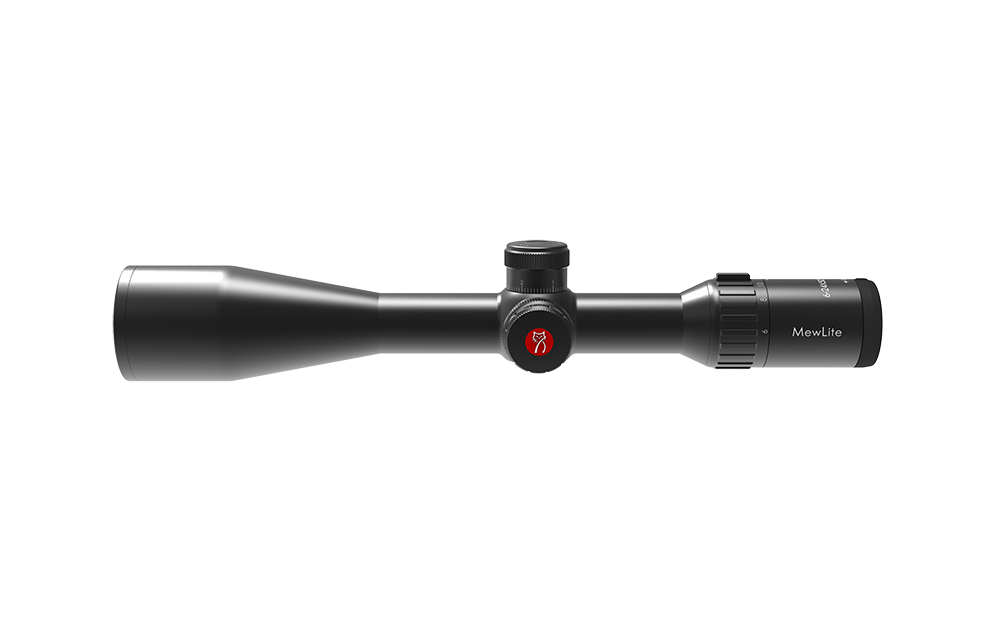

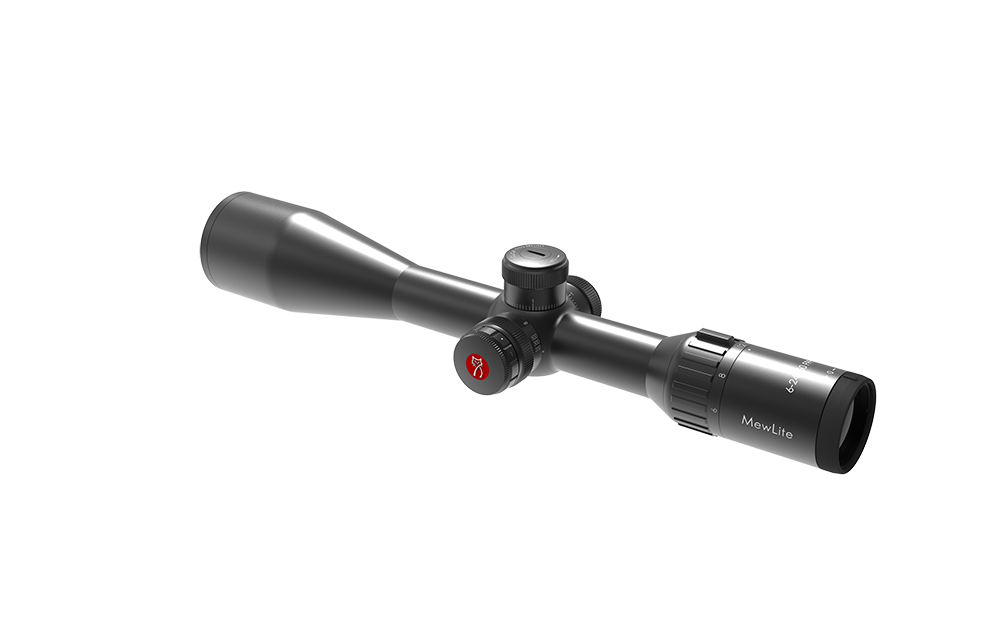

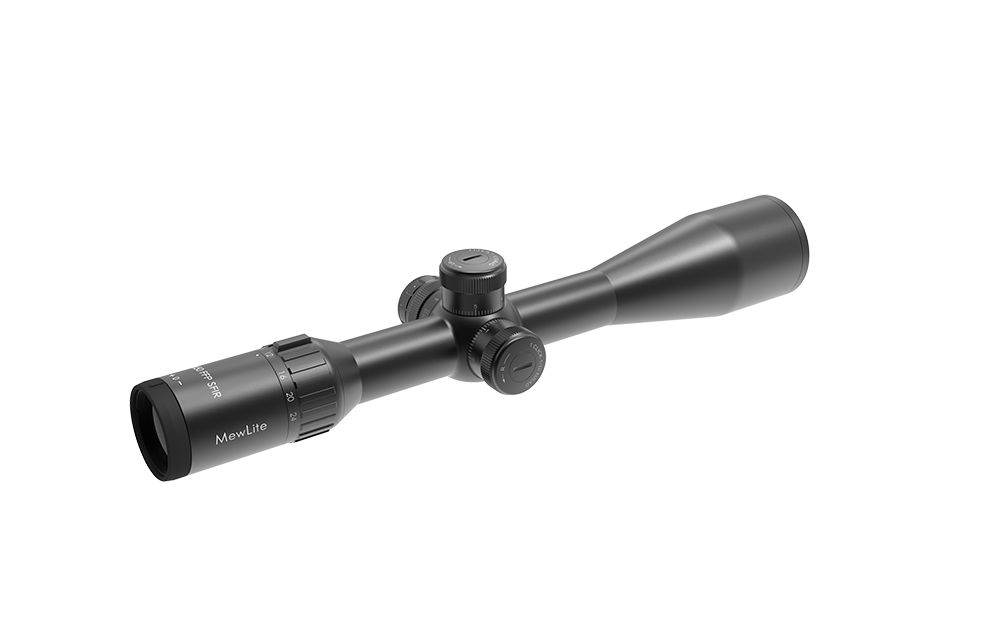

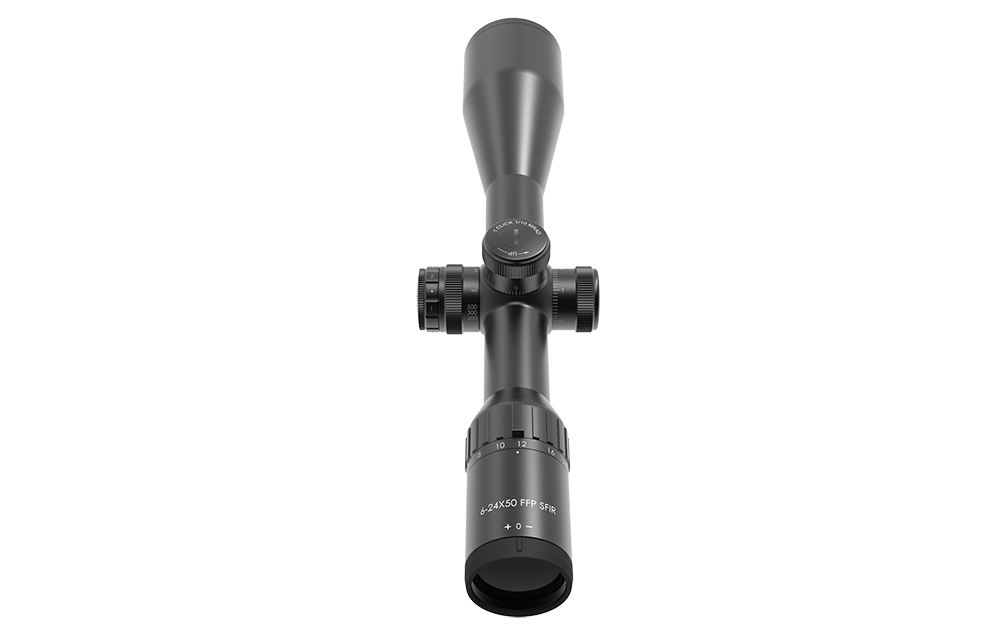

6-24x50 FFP SFIR

Detail
Specification
Dimensions

●Front reticle sight

●4 inches (100mm) Eye Relief & a Bigger EYE-BOX, keep your eyes in a comfort and safe position when you aim.

●Ultra Wide Field of View, Enable you to gain wider vision, for least feel of constraint at aiming

●Low dispersion glass provides higher resolution and color fidelity, ensures smaller aberrations across the system and optimized lens involvement for high-definition images

●A flatter imaging surface ensures excellent imaging performance from the center to the edge of the full field of view. It also minimizes aiming errors when the center of the field of view is not selected as your aiming point

●Smaller image distortion, to satisfy most demanding requirements of clients

●High-grade glass elements and excellent full multi-layer coating, resulting in a higher transmission, providing exceptional performance in low light condition.

●Constructed from a solid block of 6061-T6 aircraft grade aluminum as well as heat treatment, our main tube is 20% stronger than normal scopes, a solid reliability of high shock resistance. Our shock test criteria is 1000hits @800G

●Water-proof, fog-proof, shock-proof

●Ultra-brighter reticle illumination

●All lens are made of lead-free glasses, which is environmentally friendly and lighter in weight.

●Zero-Stop/Self-Lock/Custom Design Turret

●Ultra-thin optical design from edge to edge, providing high-definition images.

●Sunshade available



Model

 6-24x50 FFP SF IR


SKU

 22040


Tube

 30mm


Exit pupilφ

 8-2.2mm


Eye relief

 100mm


Field of view

(ft/100 yds / m/100 m)



18.8-4.7/6.3-1.6



Dioptric

compensation

 -3 to +2


Click Value

 1/10Mrad


Max Elevation Adjustment

 18.9Mrad


Max Windage Adjustment

 18.9Mrad


Parallax Setting

 15yds to infinity


Length approx.

 365mm


Weight

 665g/23.5oz

MewLite

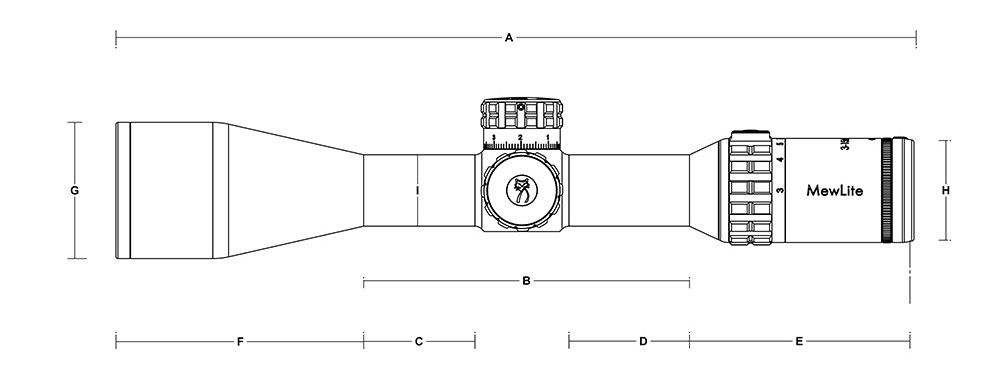

Model

6-24x50 FFP SFIR
A365
B151
C54.5
D58
E97
F121
G57.2
H45.8
I30
