2-10x40 SFIR

Detail
Specification
Dimensions

4 inches (100mm) Eye Relief & a Bigger EYE-BOX, keep your eyes in a comfort and safe position when you aim.

Ultra Wide Field of View, Enable you to gain wider vision, for least feel of constraint at aiming

Low dispersion glass provides higher resolution and color fidelity, ensures smaller aberrations across the system and optimized lens involvement for high-definition images

A flatter imaging surface ensures excellent imaging performance from the center to the edge of the full field of view. It also minimizes aiming errors when the center of the field of view is not selected as your aiming point

Smaller image distortion, to satisfy most demanding requirements of clients

High-grade glass elements and excellent full multi-layer coating, resulting in a higher transmission, providing exceptional performance in low light condition.

Constructed from a solid block of 6061-T6 aircraft grade aluminum as well as heat treatment, our main tube is 20% stronger than normal scopes, a solid reliability of high shock resistance. Our shock test criteria is 1000hits @800G

Water-proof, fog-proof, shock-proof

Ultra-brighter reticle illumination

All lens are made of lead-free glasses, which is environmentally friendly and lighter in weight.

Zero-Stop/Self-Lock/Custom Design Turret

Ultra-thin optical design from edge to edge, providing high-definition images.

Sunshade available



Specification

  2-10x40 SFIR


SKU

  21004


Magnification

  2-10X


Tube Size

  25.4mm


Objective Dia. φ

  40mm


Focal Plane

  SFP


Exit Purpil φ

  8-4.0mm


Eye Relief

  100mm


Field of View
(ft/100 yds / m/100m)

  56.2-11.3/18.7-3.7


Diopter

  -3 to +2


Click Value

  1/10Mrad


E/W adjustment range

  25Mrad


Parallax Adjustment

  100yds fix


Length

  299mm


Weight

  580g/20.46oz


Battery

  CR2032


Illumination



Six level, 6 on 6 off



Waterproof



Submersion 1m



Sunshade Thread

  M42X0.75


Nitrogen Filling




Working Temperature

  -20 °C / +55 °C


Storage Temperature

  -30 °C / +70 °C

MewLite

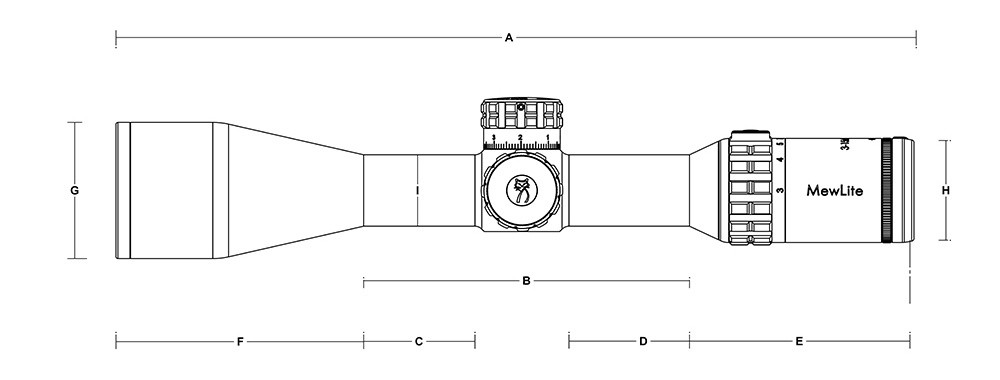

Specification

2-10x40 IR
A 299
B 119
C 41
D 43.2
E 96
F 84
G 47.2
H 43.7
I 25.4
