3-15x50 FFP SF

Detail
Specification
Dimensions

Front reticle sight

4 inches (100mm) Eye Relief & a Bigger EYE-BOX, keep your eyes in a comfort and safe position when you aim.

Ultra Wide Field of View, Enable you to gain wider vision, for least feel of constraint at aiming

Low dispersion glass provides higher resolution and color fidelity, ensures smaller aberrations across the system and optimized lens involvement for high-definition images

A flatter imaging surface ensures excellent imaging performance from the center to the edge of the full field of view. It also minimizes aiming errors when the center of the field of view is not selected as your aiming point

Smaller image distortion, to satisfy most demanding requirements of clients

High-grade glass elements and excellent full multi-layer coating, resulting in a higher transmission, providing exceptional performance in low light condition.

Constructed from a solid block of 6061-T6 aircraft grade aluminum as well as heat treatment, our main tube is 20% stronger than normal scopes, a solid reliability of high shock resistance. Our shock test criteria is 1000hits @800G

Water-proof, fog-proof, shock-proof

Ultra-brighter reticle illumination

All lens are made of lead-free glasses, which is environmentally friendly and lighter in weight.

Zero-Stop/Self-Lock/Custom Design Turret

Ultra-thin optical design from edge to edge, providing high-definition images.

Sunshade available



Model

  3-15x50 FFP SF


SKU

  23002


Magnification

  3-15X


Tube Size

  30mm


Objective Dia. φ

  50mm


Focal Plane

  FFP


Exit Purpil φ

  8-3.3mm


Eye Relief

  100mm


Field of View
(ft/100 yds / m/100m)

  37.5-7.5/12.5-2.5


Diopter

  -3 to +2


Click Value

  1/10Mrad


E/W adjustment range

  26.2Mrad


Parallax Adjustment

  10yds - ∞


Length

  335mm


Weight

  655g/23.1oz


Battery

  CR2032


Illumination

  /


Waterproof

  Submersion 1m


Sunshade Thread

  M52X0.75


Nitrogen Filling




Working Temperature

  -20 °C / +55 °C


Storage Temperature

  -30 °C / +70 °C

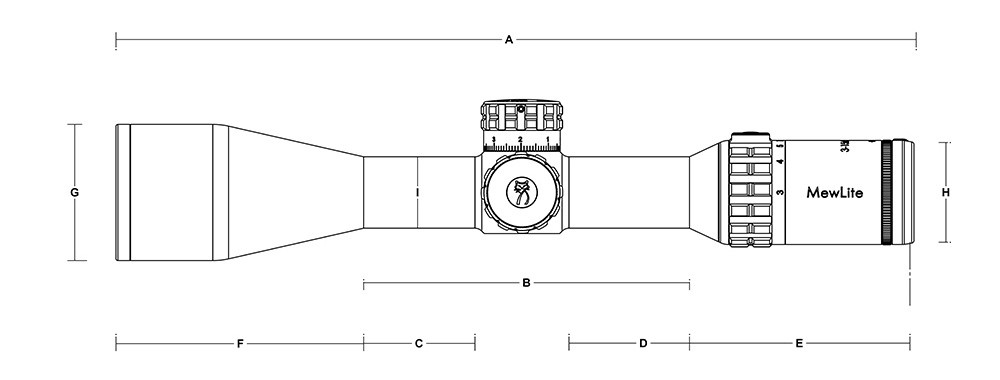

MewLite

Model

3-15x50 FFP SF
A 335.4
B 136.9
C 46.8
D 50.6
E 94.5
F 104
G 57.2
H 43.7
I 30
