3-15x50 FFP SFIR WA

3-15x50 FFP SFIR WA

SKU:68020
Online Inquiry
Detail
Specification
Dimensions
  • 5x Zoom Ratio, Full Magnification Range Consistency;

  • 4 Inches Eye Relief & Larger EYE-BOX;

  • Ultra Wide Field of View;

  • Extra-Low Dispersion High Transmission Lens;

  • Suppressed Field Curvature;

  • Ultra-bright FFP reticle illumination;

  • MewTec™ Full-Spectrum Multi-Coating;

  • Edge-to-edge Crisp Super High Resolution Imaging;

  • Uniform Sharpness from Edge to Edge;

  • 6061-T6 Aircraft Grade Aluminum;

  • Waterproof, Fogproof, Shockproof;

  • Tilt Sensor with Auto ON/OFF Timer;

  • Zero-Stop / Self-Locking / Turn Counting Turrets;



Model

 3-15x50 FFP SFIR WA


SKU

 68020


Tube

 30mm


Exit pupilφ

 8-3.3mm


Eye relief

 100mm


Field of view

(ft/100 yds / m/100 m)



40.8-8.2/13.6~2.73



Dioptric

compensation

 '-3 to +2


Click Value

 1/10 MRAD


Max Elevation Adjustment

 26MRAD


Max Windage Adjustment

 17.5MRAD


Parallax Setting

 15yds to inifinity


Max Elevation Adjustment

 26MRAD


Max Windage Adjustment

 17.5MRAD


Length approx.

 338mm


Weight

 /

1788774253955522233430097920.png@!w400

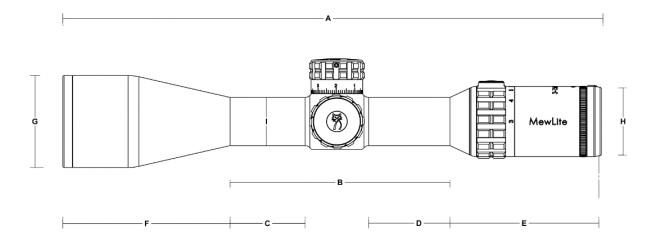

Model

3-15x50FFP SFIR
A338
B143
C41
D62
E98
F96
G57.2
H45.8
I30
