3-15X50 SFIR

3-15X50 SFIR

SKU:24001
Online Inquiry
Detail
Specification
Dimensions

● 4 Inches Eye Relief & a Bigger EYE-BOX;
● Ultra Wide Field of View;
● Excellent Clarity with High-grade Optical Glass;
● Reduce Field Curvature;
● Parallax Adjustment &Remove Distortion;
● MewTec™ Multi-Coating;
● 6061-T6 Aircraft Quality Aluminum;
● Waterproof, Fogproof, Shockproof;
● Ultra bright Reticle Illumination;
● Excellent Reticle Image With Super High Resolution;
● Lead Free Glass Lens. Environment Care;
● Zero-Stop / Self-Locking /Turn Counting;
● Super thin sharpness from edge to edge;
● Sunshade Adaptable.

Scan the QR code to read on your phone


Model

  3-15X50 SFIR


SKU

  24001


Tube

  30mm


Exit pupilφ

  8-3.3mm


Eye relief

  100mm


Field of view (ft/100 yds / m/100 m)

  37.5-7.5/12.5-2.5


Dioptric compensation

  -3 to +2


Click Value

  1/10Mrad


Max E/W Adjustment

  26.2Mrad


Parallax Setting

  10yds to infinity


Length approx

  335mm


Weight

  655g/23.1oz


Brightness levels

  Six Level


Submersion tightness

  1m

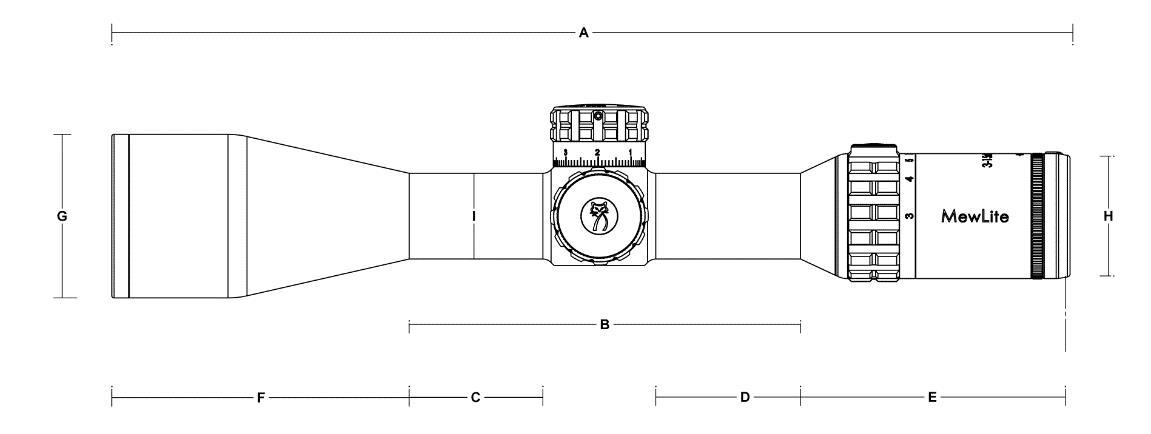

MewLite

Model

3-18x50SF IR(S)
A 335.4
B 136.9
C 46.8
D 50.6
E 94.5
F 104
G 57.2
H 43.7
I 30
