1-8X24 FFP IR

Detail
Specification
Dimensions
  • 4 Inches Eye Relief & Bigger EYE-BOX;

  • Ultra Wide Field of View;

  • Extra-Low Dispersion and High Transmission Lens;

  • High light transmission 93%;

  • Reduced Field Curvature;

  • MewTec™ Multi-Coating;

  • 6061-T6 Aircraft Quality Aluminum;

  • Waterproof, Fogproof, Shockproof;

  • Ultra-brighter reticle illumination (*);

  • Excellent Reticle Image With Super High Resolution;

  • Automatic Switch ON/OFF timer with tilt sensor(*);

  • Zero-Stop / Self-Locking /Turn Counting(*);

  • Super thin sharpness from edge to edge;

  • Configurations marked * are optional for custom requirements.



Model

 1-8X24 FFP IR


SKU

 52010


Tube

 30mm


Exit pupilφ

 5-2.5mm


Eye relief

 93mm


Field of view (ft/100 yds / m/100 m)

 123-15.4/41-5.1


Dioptric compensation

 -3 to +2


Click Value

 1/2 MOA/0.1MRAD
 Max E / W Adjustment 30 tube 140MOA/40MRAD
 Parallax correction 100m fix


Length approx

 282mm


Weight

 468g/17.1oz


Submersion tightness

 1m

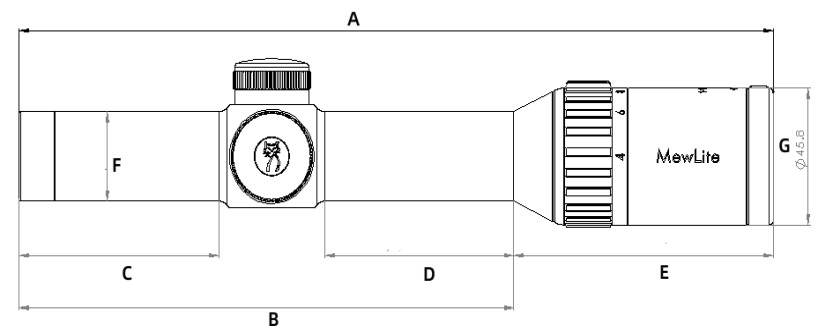

Model

1-8X24 FFP IR
A282
B191
C82
D71
E97
F30
G45.8
