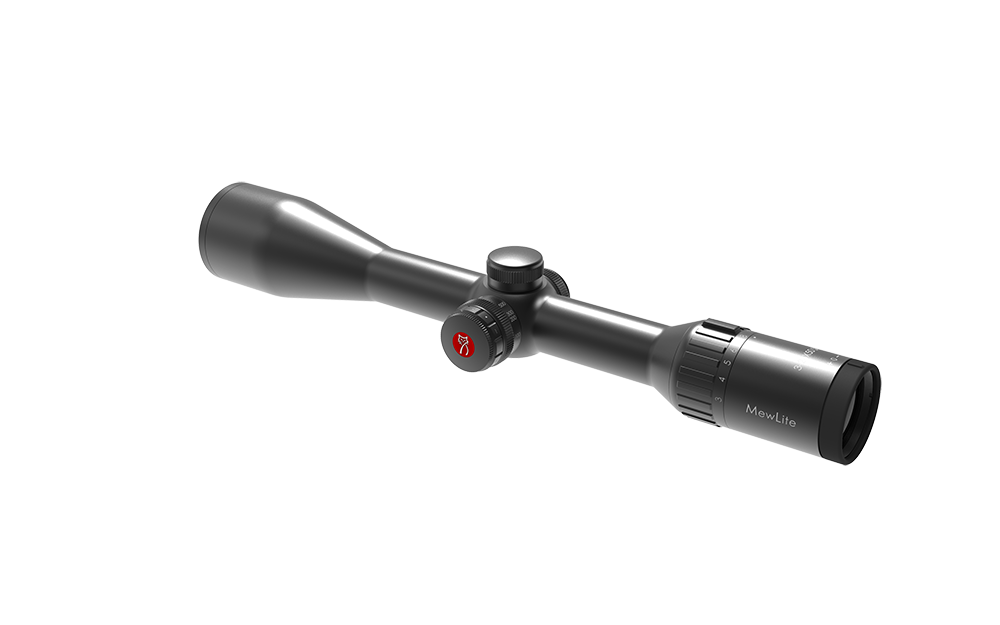

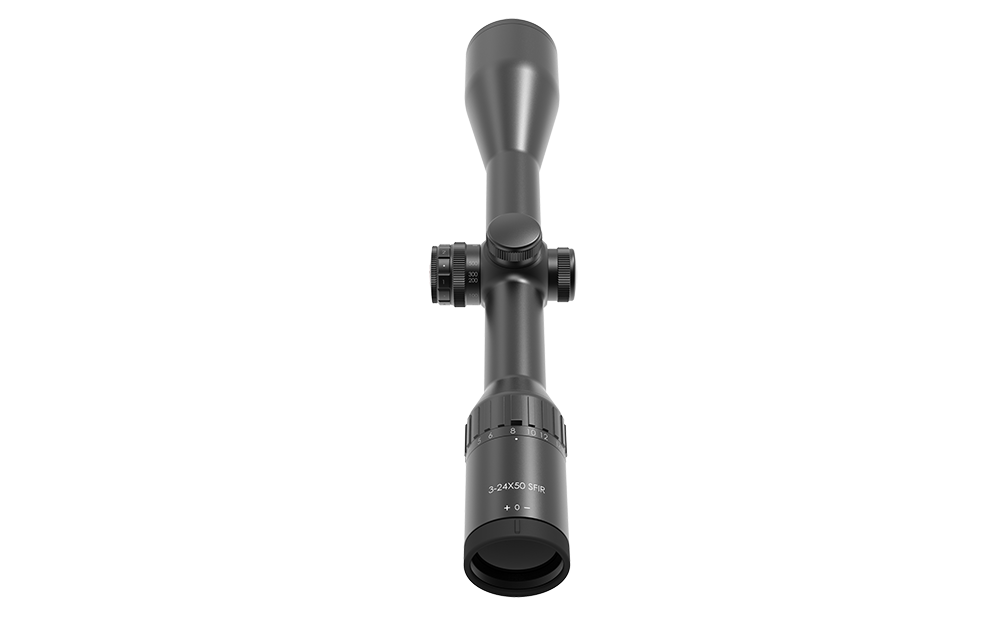

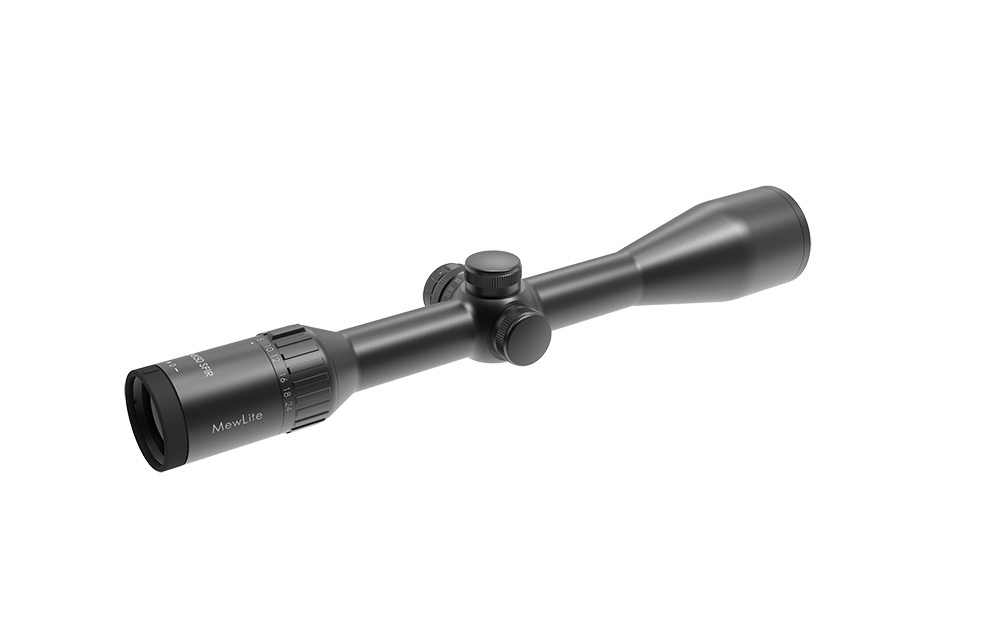

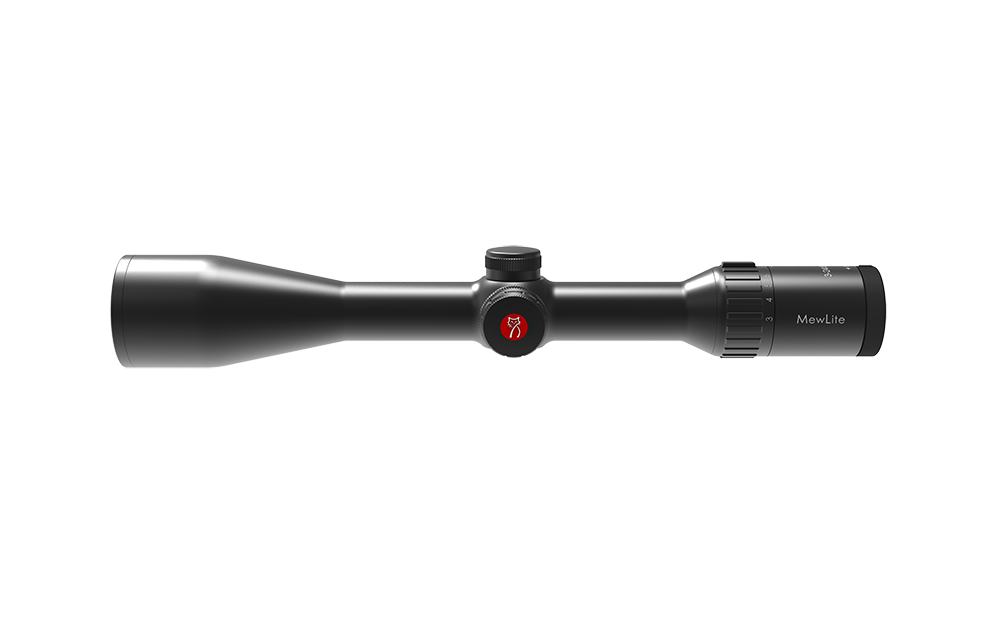

3-24X50 SFIR

3-24X50 SFIR

SKU:31060
Online Inquiry
Detail
Specification
Dimensions

● 4 Inches Eye Relief & Bigger EYE-BOX;

● Ultra Wide Field of View;

● Extra-Low Dispersion and High Transmission Lens;

● High light transmission 93%;

● Reduced Field Curvature;

● MewTec™ Multi-Coating;

● 6061-T6 Aircraft Quality Aluminum;

● Waterproof, Fogproof, Shockproof;

● Ultra-brighter reticle illumination (*);

● Excellent Reticle Image With Super High Resolution;

● Automatic Switch ON/OFF timer with tilt sensor(*);

● Zero-Stop / Self-Locking /Turn Counting(*)

● Super thin sharpness from edge to edge;

● Sunshade Adaptable.

Configurations marked * are optional for custom requirements.


Model

 3-24X50 SFIR


SKU

 31060


Tube

 30mm


Exit pupilφ

 8.5~2mm


Eye relief

 95mm


Field of view (ft/100 yds / m/100 m)

 41-5.13/13.67-1.71


Dioptric compensation

 -3 to +2


Click Value

 1/4MOA/0.1MRAD


Max E/W Adjustment

 80MOA/23.3MRAD


Parallax Setting

 15m to infinity


Length approx

 376mm


Weight

 /


Model

3-24X50 SFIR
A376
B163
C58.5
D66.5
E97
F116
G57.2
H45.8
I30
