1-10x28FFP

Detail
Specification
Dimensions

●4 Inches Eye Relief & Bigger EYE-BOX

● Ultra Wide Field of View;

● Extra-Low Dispersion and High Transmission Lens;

● High light transmission 93%;

● Reduced Field Curvature;

● MewTec™ Multi-Coating;

● 6061-T6 Aircraft Quality Aluminum;

● Waterproof, Fog proof, Shockproof;

● Ultra-brighter reticle illumination (*);

● Excellent Reticle Image With Super High Resolution;

● Automatic Switch ON/OFF timer with motion sensor(*);

● Zero-Stop / Self-Locking / Revolution indicator(*)

● Super thin sharpness from edge to edge;

Configurations marked * are optional for custom requirements.





Model

 1-10x28 IR


SKU

 53010


Tube

 34mm


Exit pupilφ

 8.5~2.8mm


Eye relief

 93mm


Field of view (ft/100 yds / m/100 m)

 123-12.3/41-4.1/23.17°-2.35°


Dioptric compensation

 -3 to +2


Click Value

 1/2 MOA / 0.1MARD


Max E/W Adjustment

 178MOA/51 MRAD


Parallax Setting

 100 fix


Length approx

 278


Weight

 662g/23.35oz


Submersion tightness

 1m

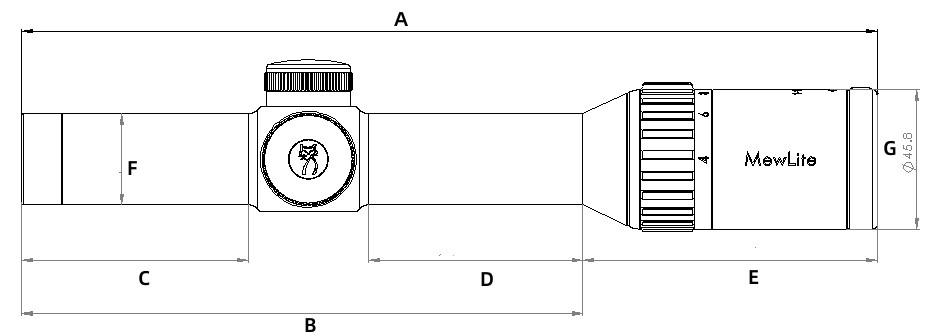

Model


1-10x28 FFP
A 278
B 185
C 67
D 71
E 93
F 34
G 45.8
