1-6x28 FFP IR

1-6x28 FFP IR

SKU:61010
Online Inquiry
Detail
Specification
Dimensions

4 inches (100mm) Eye Relief & a Bigger EYE-BOX, keep your eyes in a comfort and safe position when you aim.

Ultra Wide Field of View, Enable you to gain wider vision, for least feel of constraint at aiming

Low dispersion glass provides higher resolution and color fidelity, ensures smaller aberrations across the system and optimized lens involvement for high-definition images

A flatter imaging surface ensures excellent imaging performance from the center to the edge of the full field of view. It also minimizes aiming errors when the center of the field of view is not selected as your aiming point

Smaller image distortion, to satisfy most demanding requirements of clients

High-grade glass elements and excellent full multi-layer coating, resulting in a higher transmission, providing exceptional performance in low light condition.

Constructed from a solid block of 6061-T6 aircraft grade aluminum as well as heat treatment, our main tube is 20% stronger than normal scopes, a solid reliability of high shock resistance. Our shock test criteria is 1000hits @800G

Water-proof, fog-proof, shock-proof

Ultra-brighter reticle illumination

Ultra-clear reticle image and high resolution

Adopting advanced surface hard oxidation technology, the tube surface has a harder and thicker protective layer, the scratch resistance surface can be improved by 30%

All lens are made of lead-free glasses, which is environmentally friendly and lighter in weight.

Zero-Stop/Self-Lock/Custom Design Turret

Sunshade available



Model

 1-6x28 FFP IR


SKU

 61010


Tube

 34mm


Exit pupilφ

 8-4.6mm


Weight

 550g/19.4oz


Eye Relief

 95mm


Field of View
(ft/100 yds / m/100m)

 122.5-20.4/40.8-6.8


Diopter

 -3 to +2


Click Value

 0.1MRAD


E/W adjustment range

 52MRAD


Parallax Adjustment

 100yds fix


Length

 296mm

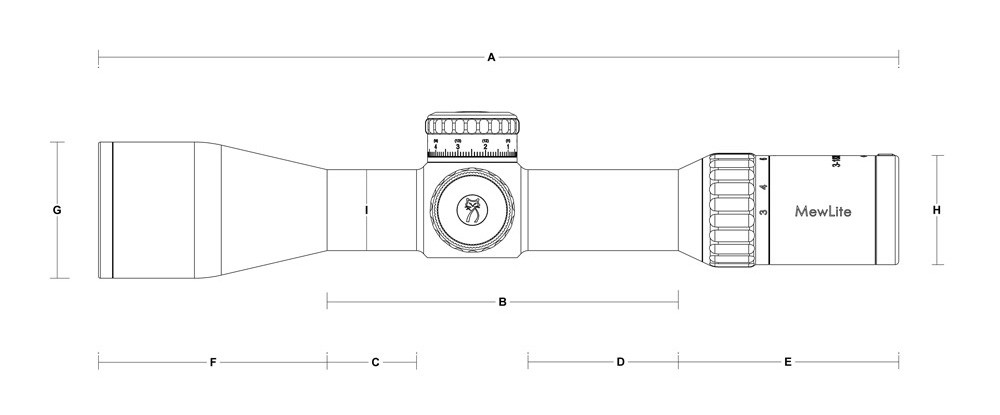

MewLite

Model

1-6x28 FFP IR
A296
B202
C92
D63
E94
F/
G34
H45.8
I34
